BDC-Dual-Band-KU

Dual BDC (Block Down Converter) for simultaneous Low & High Ku-Band

The Dual BDC covers the full Ku-band frequency range simultaneously on low and high band outputs. The BDC chassis is ideal for installation in various professional applications involving low symbol rate carriers. It comes as standard with an internal low-loss isolator.

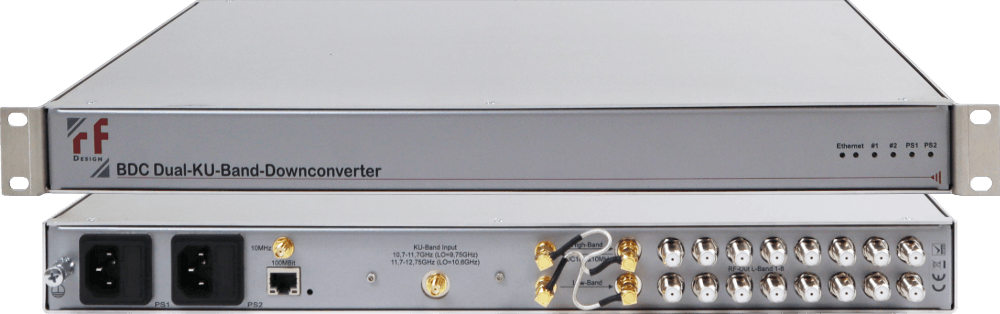

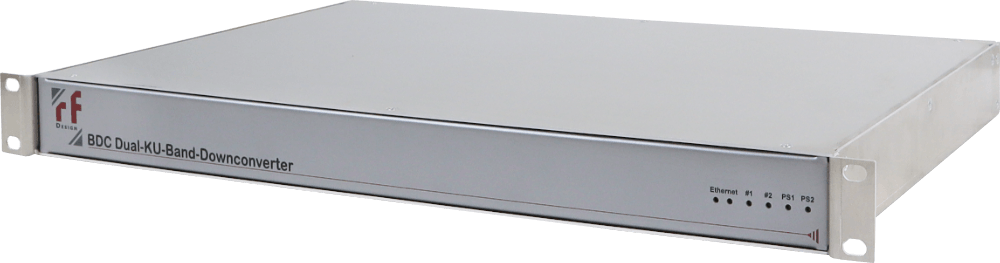

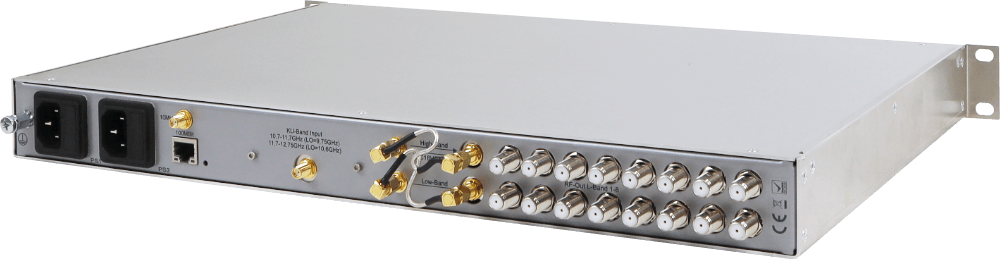

The integrated eight-way splitter within the 1RU/19″ rack mount chassis allows both the low and high band signal distribution.

Features & Benefits

  • Full Ku-Band coverage

  • Standard Ultra Low Phase Noise meets all profiles of DVB-S2X

  • High P1dB and IP3

  • Standard with Internal Low Loss Isolator

  • Wide operating temperature range

  • Gain 50dB

  • 50Ohm SMA(f) BDC input connector

  • Extended L-Band frequency (850 – 2450MHz)

  • Dual eight-ways splitters for both BDC low and high band outputs

  • RF power monitoring for both BDC low and high band

  • BDC current monitoring

  • 10MHz external reference signal input

  • Splitter 75Ohm F(f) output connectors.

  • 1:1 redundant dual power supply (hot-swappable)
