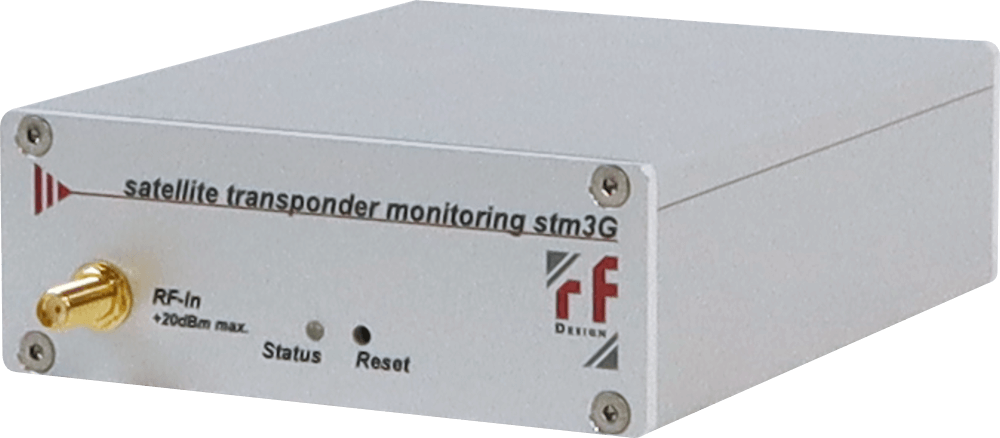

Satellite Transponder Monitor stm3G

Selective RF-Power Meter 50MHz – 3GHz

The stm3G is a high-performance, compact and rack-mountable selective RF power monitoring unit, specifically developed for monitoring the power levels of individual satellite transponders in 3GHz and in the L-band range. Based on the proven hardware design of the RF-Design PwrM3G, this enhanced version adds the capability for precise, selective power tracking of defined carrier frequencies.

Features & Benefits

  • Selective transponder monitoring in the 50–3000 MHz

  • Multi-channel power measurement for up to 30 transponders simultaneously

  • Real-time analysis with individual Min/Max tracking per transponder

  • Spectrum view and bar chart modes for flexible visualization

  • Per-transponder threshold alarms, fully configurable

  • Long-term trace & logging with real-time graphical view and CSV export

  • User interface via Windows application or future web-based UI

  • 1RU/19” chassis with integrated power supply and 4 port Ethernet switch

  • Offset compensation for cables and directional couplers
