LSCX818

8-way active Hybrid L-Band Splitter/Combiner TX/RX System

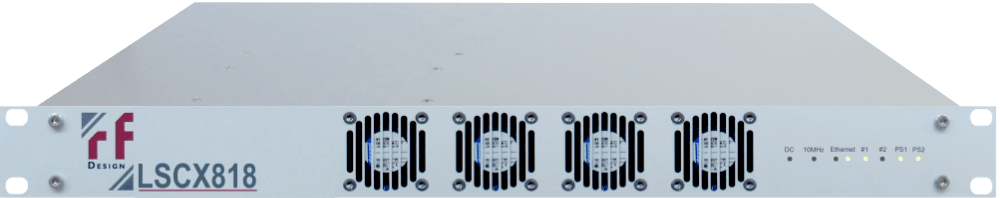

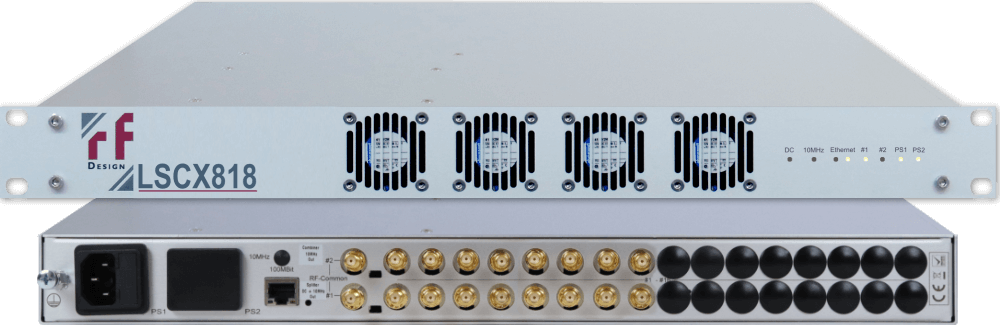

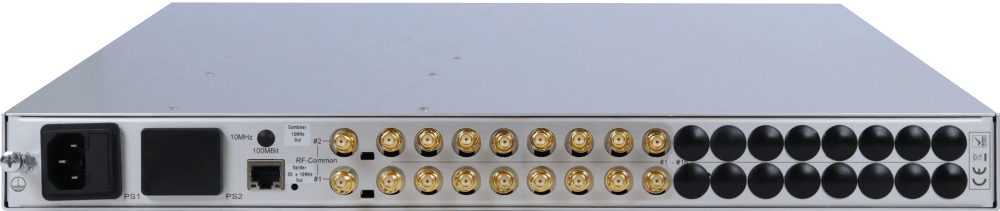

The LSCX818 is a 1RU/19” rack mount 8-way active Extended L-Band splitter/combiner unit specially designed in particular for VSAT and SNG/DSNG operations but also for other satellite uplink/downlink applications for instance to interconnect to a corresponding number of satellite modems or other interconnected devices.

  • RF-Design LSCX818
  • RF-Design LSCX818
  • RF-Design LSCX818

Features & Benefits

  • Compact 8-way Splitter & Combiner TX/RX system
  • Space saving 1RU/19″ rack mount design
  • Extended L-Band frequency range 850 – 2450MHz
  • Switchable LNB-supply (13/15/18VDC, 22kHz tone, 400mA)
  • Selectable BUC-supply (ON/OFF, 24V or 48V)

  • External 10MHz reference port

  • Internal 10MHz reference signal (Option)

  • Front panel coloured status LED´s displaying health status of splitter and combiner module, power supplies, LNB-supply, BUC-supply and 10MHz

  • Remote configuration via Ethernet-Interface, (WebGUI, SNMP)

  • 1:1 redundant dual power supply (Option)
