LSCX414

4-way active Hybrid L-Band Splitter/Combiner TX/RX System

The LSCX414 is a 4-way active hybrid L-Band splitter/combiner at a size of a 1RU/19” rack mount chassis only. The unit is especially designed in particular for VSAT terminals, SNG/DSNG operations but also for other satellite uplink/downlink applications such as small teleports e.g. to interconnect a corresponding number of satellite modems or other devices with it.

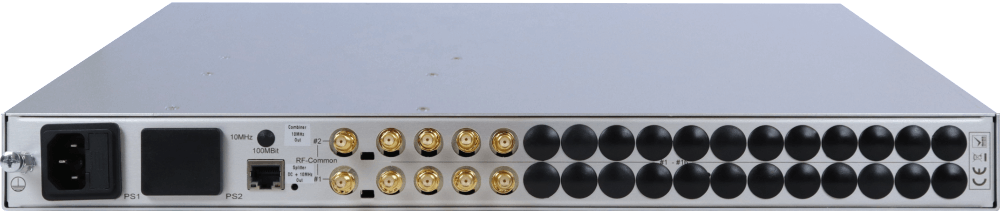

  • RF-Design LSCX414

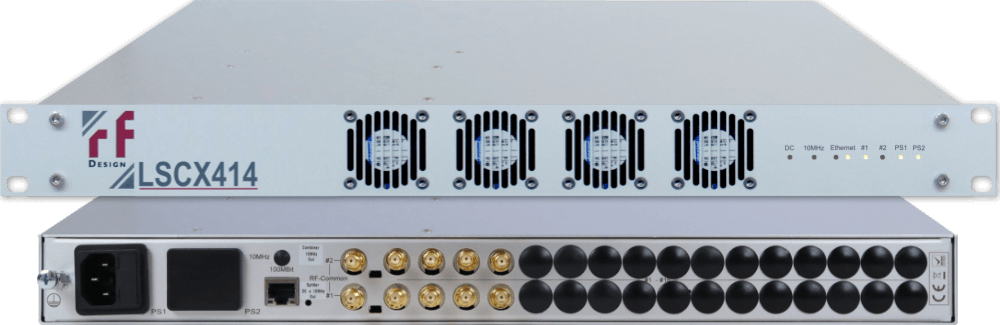

  • RF-Design LSCX414

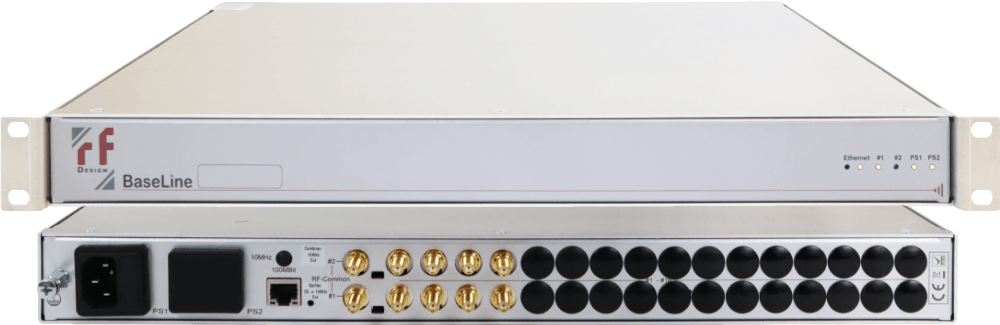

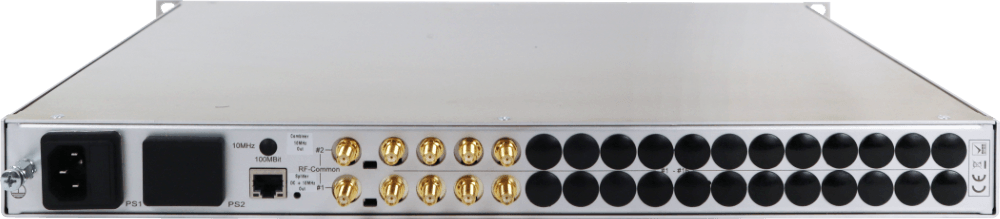

  • RF-Design LSCX414

Features & Benefits

  • Compact 4-way Splitter & Combiner TX/RX system

  • Space saving 1RU/19″ rack mount design

  • Extended L-Band frequency range 850 – 2450MHz

  • Switchable LNB-supply (13/15/18VDC, 22kHz tone, 400mA)

  • Selectable BUC-supply (ON/OFF, 24V or 48V) (Option)

  • External 10MHz reference port

  • Internal 10MHz reference signal (Option)

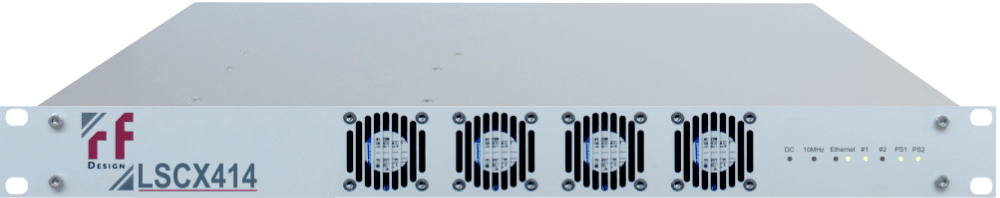

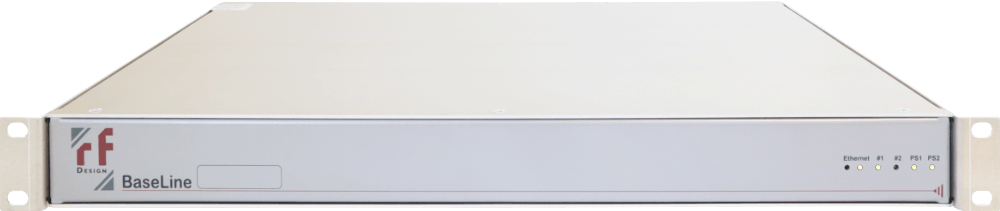

  • Front panel coloured status LED´s displaying health status of splitter and combiner module, power supplies, LNB-supply, BUC-supply and 10MHz

  • Remote configuration via Ethernet-Interface (WebGUI, SNMP)

  • 1:1 redundant dual power supply (Option)
